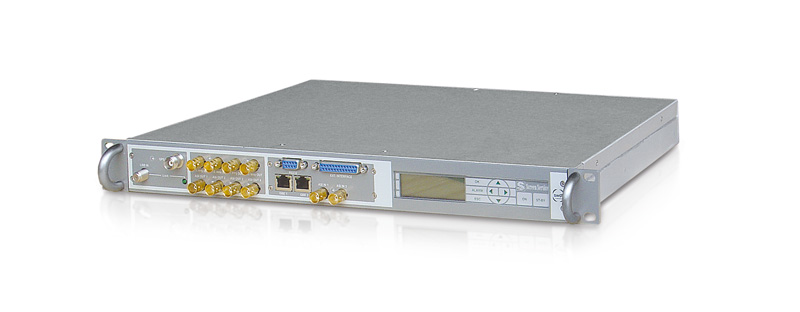

IRRM2 LCN

LCN processor
Processed input:
One logical input, selectable from the available physical inputs is processed
and sent to out.

TS input analysis:
One logical input, selectable from the available physical inputs is analysed.
The analyzer shows the following SI/PSI from input:
• PAT
• PMT
• SDT
• NIT
• NIT LCN descriptor
On the fly LCN processor:
The on-the-fly processor available allows the user to modify the LCN descriptor sent to out.
For each program in the LCN descriptor the following parameters can be modified:
• LCN number

Management
Alarm matrix management:
Management of the alarm matrix to enable/disable:
Alarm notification
Relay excitement
Trap activation
Output Mask On/Off
Exportable Event log:
Capability to export on text file the event log in memory.
Configuration file import/export:
Capability to import and export on file the machine configuration
SNMP:
Implementation of SNMP tree for device management
• SNMP engine supports global MIBs and tables
GbE management:
• Complete port management at Ethernet/IP level
• MAC address definition
• IP address definition
• Gateway definition
• Subnet mask definition
