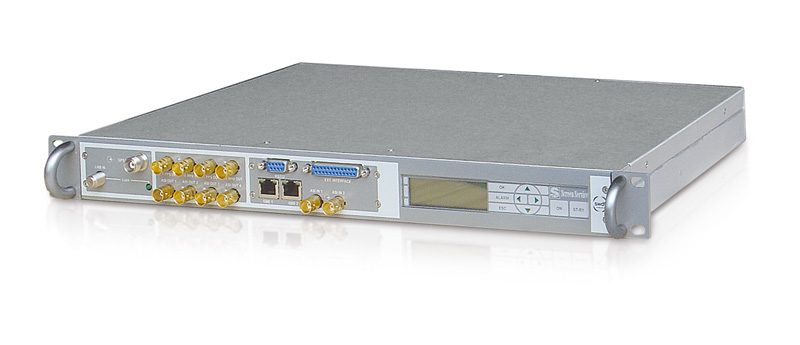

XBT 105

XBT 105 IRRM is an Integrated Satellite Receiver, Remultiplexer and SFN adapter allowing the Synchronous regionalization of TS content received.

IRRM105 multiplexer performs the following basic functions:
• GPS receiver capable of synchronizing internal time generators
• Auto-PID filtering for Services regionalization
• Auto-restamping of SI for Services regionalization
• Megaframe Information Packets generation synchronized by MFP system
• PID re-mapping on each logical input
• Network adaptation to the exact bit rate according to DVB-T/H RF parameters with PCR re-stamping
Inputs to multiplexers are:
• ASI transport streams
• 1 RF connector for DVB-S / S2 reciver
• 1 RTP clients for RTP/DP encapsulated Transport Streams
Outputs from multiplexers are:
• ASI transport streams
• 1 RTP/DP Server carrying encapsulated Transport stream
• IGMP generation
As any multiplexer of the IRRM family, it has built-in:
• web server to dispatch a Java applet for interactive management
• java applet tested on most popular browser
• java applet downloadable for local execution
• SNMP server for remote control internal file system accessible via TCP/IP and TFTP protocols for easy remote upgrade
• ultra fast storage are for event system storage
• telnet server for access via character based terminals
• Geographical coordinates available
• Battery powered local time clock automatically synchronized to UTC
• 8 trap address for automatic alarm/monitoring
