ODU

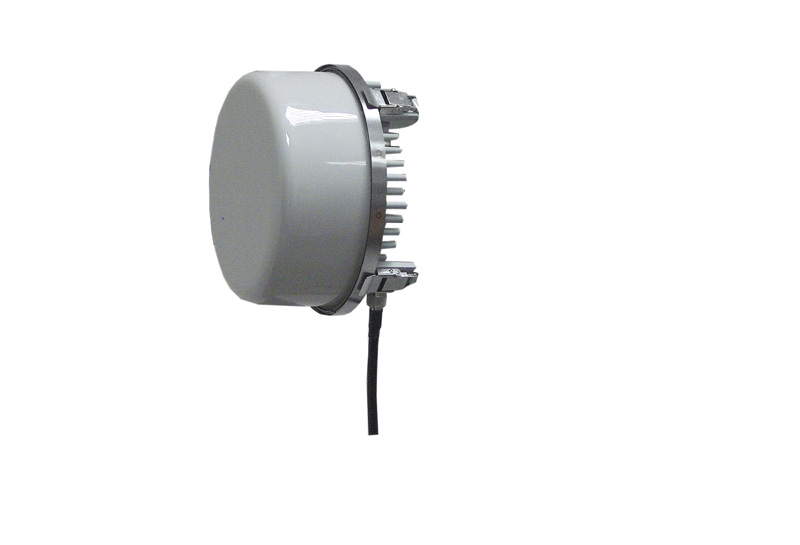

The Outdoor Unit provides a flexible and cost-effective solution to System Integrators for PDH and SDH radio systems; operating in the licensed bands from 4 to 38 GHz, the ODU Family is the best solution for fast time to market, highest performances and reliability.
The 17 and 24 GHz Cross ODU are specifically designed to meet the requirements of the ISM bands. They operate with Tx and Rx Crosspolarized through an OMT into a circular Waveguide.
The ODU is SW configurable ODU, settings and readings are available through Customer Specific Telemetry Protocol. A built in microcontroller provides full calibration of Transmit Power and Receive Signal Level (RSL) by means precise and reliable algorithms.
Additionally, the ODU enhanced software allows inventory modules ID, setting and fine tuning of several parameters and downloadable field upgrades.
The advanced features and enhanced capabilities of the ODU make it the ideal solution for Radio Links from 2 to 310 Mbps capacity, with modulation schemes from QPSK to 128 QAM and channel BW from 3.5 to 56 MHz.
The small size of the modules allows to eventually fit them into the customer standard ODU housing, upon request.
Main Features
• High Linearity allowing highest order modulation schemes..
• Very low power Consumption.
• Compact and Lightweight.
• Very low Phase Noise.
• SW Selectable BW.
• Superior reliability - High MTBF.
• Fully Calibrated over the temperature range.
• Proprietary quick release WG Antenna Interface.
Options
• HP version (available up to 13GHz)
• WB version for 56 ch. BW operation
• -50 °C (-58 °F) Operational.
• Customized IF Frequency / Telemetry Interface.
• Customer Specific IDU Interface.
• 17 & 24GHz cross polarization versions for licence-exempt ISM bands
