RFU-FI UHP

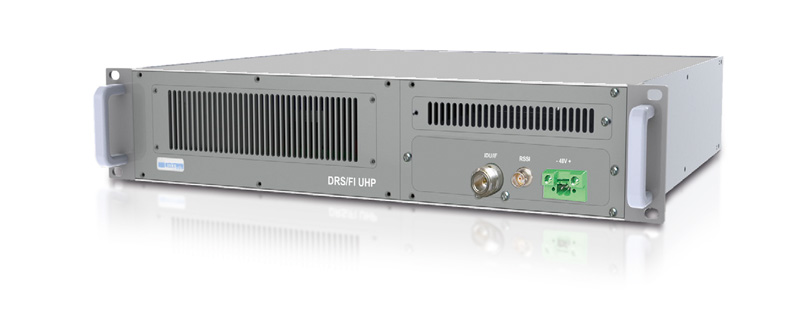

Full-Indoor RF Unit for Microwave Radio Systems, Ultra High Power 4 to 11GHz Frequency Range

The RFU – FI™ Full Indoor RF Unit provides a flexible and cost effective OEM solution to System Integrators for SDH radio systems; operating from 4 to 11 GHz, the RFU – FI™ family is your solution for fast time to market, highest performances and reliability.
RFU – FI™ is a SW configurable RF Unit for Full Indoor system available in 1+0 and 1+1 Space and Polarization Diversity. Custom solutions for 1+1 Hot Stand-by and Frequency diversity are available on application.
The advanced features and enhanced capabilities of the RFU – FI™ make it the ideal solution for Radio Links from Super PDH to 2xSTM-1 and Gigabit Ethernet, from QPSK to 128 QAM and from 10 to 56 MHz channel BW.

Features:

Main Features
• High linearity allows high order modulation scheme
• Ultra High Output Power
• Low current consumption
• Very low Phase Noise
• Superior reliability- High MTBF
• Fully calibrated over the temperature range

Options
• Custom Branchings for 1+1 HSB and FD
• SW selectable BW
• Customer specific IDU Interface
• Customized IF Frequency/Telemetry interface
