SDIDU - HS

Main Features
Up to 310Mbps data throughput, full duplex.
Available modulation schemes:
Programable QPSK/6QAM/32QAM/64QAM/128QAM/256QAM.
• Available channel bandwidth:
> ETSI standards : 7/14/28/40 and 56 MHz
> ANSI standards : 10/20/30/40 and 50 MHz.
• Customer network data interface:
> 1 x Gigabit Ethernet (100/1000Base-T)
> 1 x 10/100BaseTX for data or management
> 1-2 x E1 / T1 plug-in extension module
> 1 x E3 / DS3 plug-in extension moexternal mux
> 4 x ASI In/Out (half duplex) or 2 x TX + 2 x RX (full duplex)
• Configuration:
Mix of TDM + Ethernet / Ethernet only / TDM only
Capacity is dynamically allocated between E1/T1/E3/DS3 channels and Ethernet
• IF/ODU interface
N-type connector standard configuration 350 / 140 MHz IF ODUs.

Applications
• Digital microwave systems optimized for Ethernet traffic transmission /mix Ethernet + TDM
• Non-standard applications based on customer specific requirements also available
Other Features
• Management
> IP based (HTTP via web GUI, SNMP with MIB, Telnet)
> 1 x USB A for mass storage device (FW upgrade, backup,..)
> 1 x USB B serial port

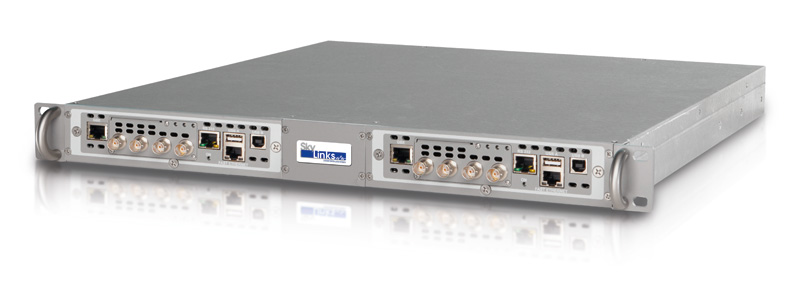

> 1 x RS-232 serial portHS-IDU is a software defined Indoor Unit optimized for high speed Ethernet networking with optional combination of side channels for E1/T1 or E3/T3 line interfaces, thanks to plug-in cards to add to the basic unit.
Thanks to the scalable concept, this system offers the flexibility to increase the transmission capacity depending on application needs.
The system provides full range of modulation schemes from QPSK to 256QAM, arbitrary bandwidth selection in respect to both ETSI and ANSI standards and data throughput rates up to 310 Mbps.
In the typical Split -Mount configuration ODUs can be connected to the IDU over standard intermediate Tx and Rx IF frequencies (+DC pw supply + telemetry) through a coax connections. Link management is supported via a web GUI and SNMP with custom MIB.
