ASI To IP / IP to ASI converter

SMPTE Specification 2022-1: Forward Error Correction for Real-time Video/Audio Transport Over IP Networks Modern data networks are subject to a variety of impairments, ranging from simple bit errors to groups of contiguous data packets.
The Pro-MPEG COP3/SMPTE 2022 standard has been designed specifically to ensure that high quality video that is used by broadcasters for their most valuable live video feeds are able to be transported over these networks.
COP #3 FEC can protect a video stream from a burst packet loss of up to 255 packets, which is suitable for most private, managed IP networks using QoS techniques such as MPLS, RSVP, and DiffServ. COP #3 FEC is available as the option within user datagram protocol (UDP)/IP network encapsulation, with real-time transport protocol (RTP) encapsulation.
The generation of FEC packets in the COP #3 standards is based upon a matrix defined by the parameters L and D. L represents the number of columns in the matrix, while D represents the number of rows. The standard defines the generation of two types of FEC packet: Column FEC and Row FEC. A FEC packet is generated by XOR of the media packets in a column or a row. Once generated, the Column FEC packets and Row FEC packets are transmitted along with the original media packets on 3 separate UDP ports to a Pro-MPEG COP #3 compliant receiving device.

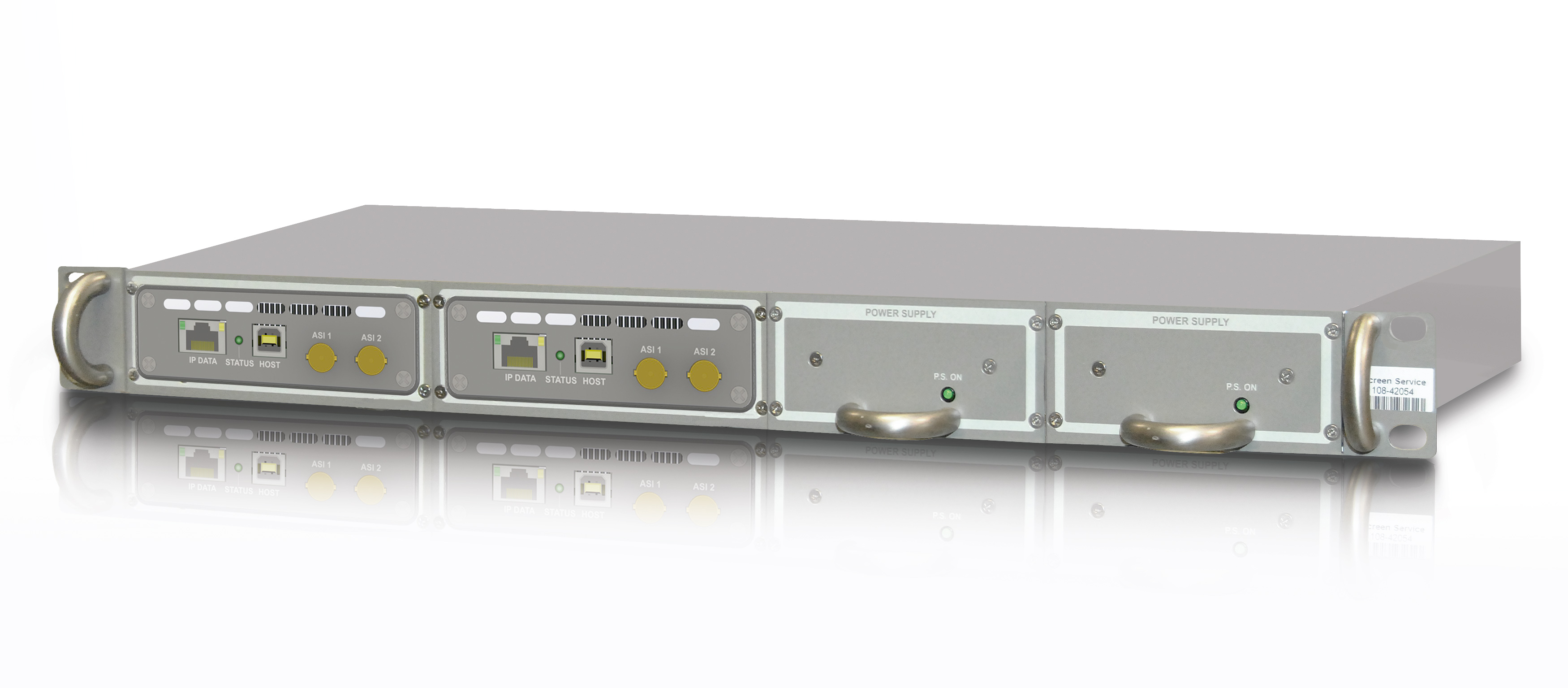

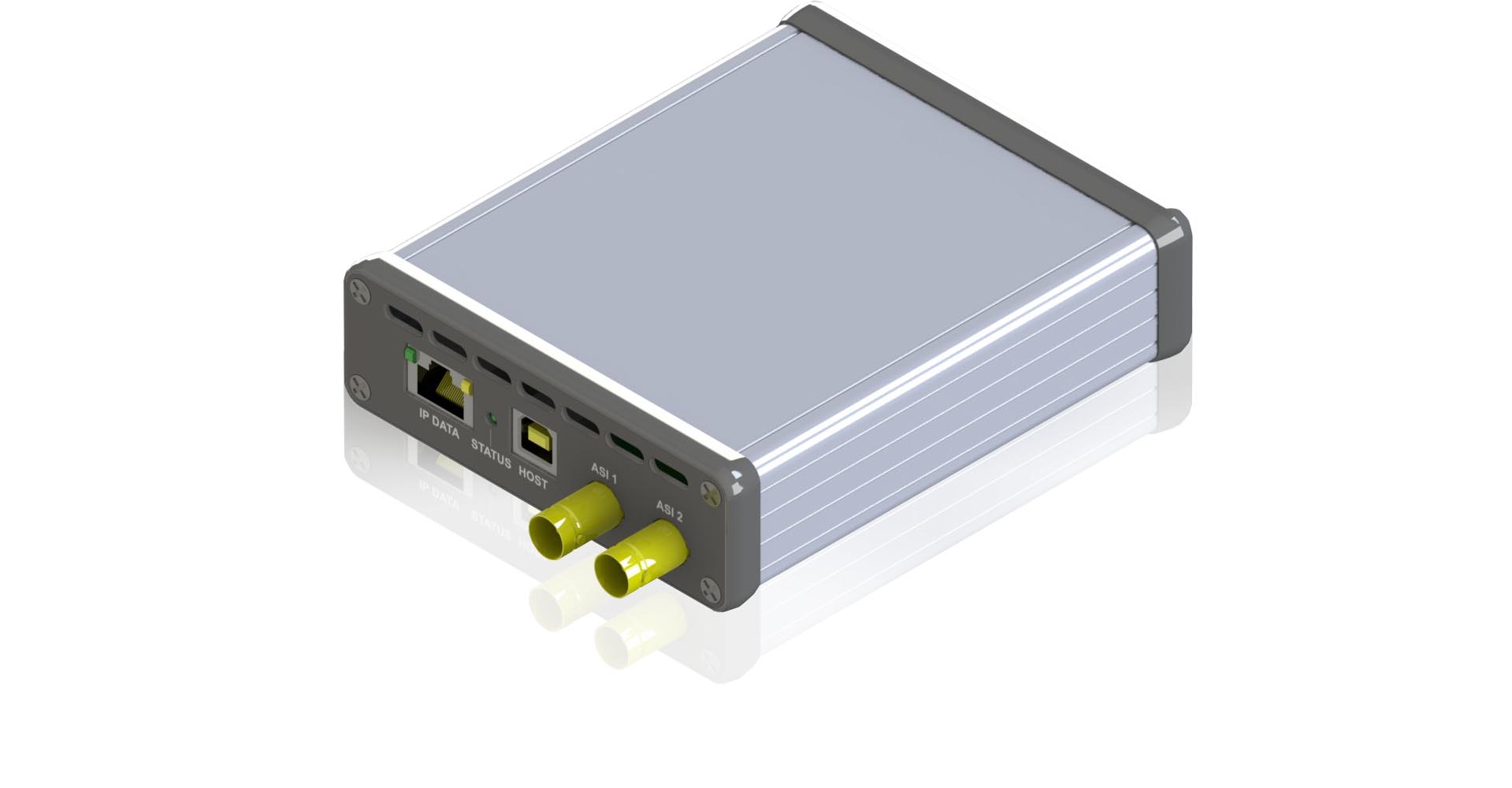

SMPTE-2022 Network Adapters provide a cost effective and highly reliable solution for transporting digital video content over IP networks (MPEG2-TS over IP also called DVB over IP or ASI over IP) While Pro-MPEG COP #3 FEC is adequate for most private IP links, it is not robust enough to handle the challenges associated with moving video over highly loss IP networks such as the Public Internet.
