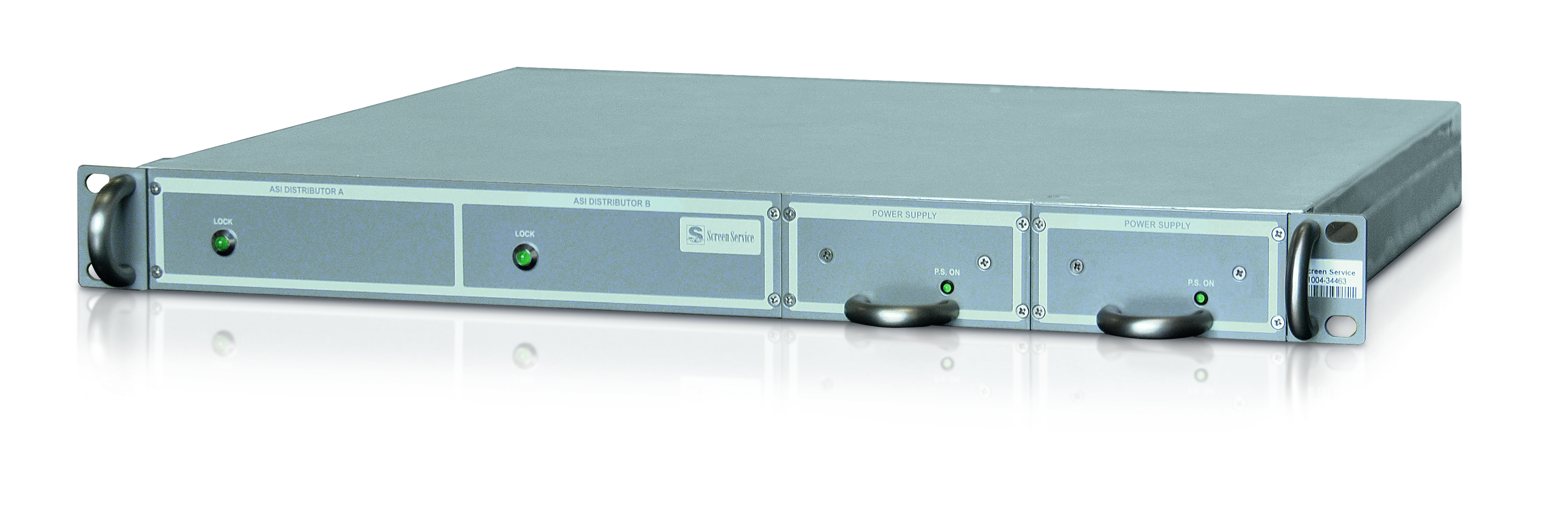

XBT 706D

The XBT 706D enables a very flexible and easily manageable distribution of 1+1 Input to 6 + 6 Output SDI/DVB-ASI (270 Mb/s) for different purposes (microwave links back to back propagation, distribution of signal to monitoring and test equipment, general connectivity in the head end,etc.) together with the related clock. The system can be used either in multiple distributionoption for up to 12 outputs or as a fully redundant unit for the 1 input to 6 outputs configuration of the XBT 600.To compensate for the signal distortion potentially introduced by long transmission (up to 200 mt.) an automatic line equalizer is present on the ASI input port. Besides that the outgoing signal is muted in case of lacking of the related incoming signal. The equipment has the possibility to mount the redundant power supply as standard base configuration.

Available on request the model XBT 706E with 4 SDI/DVB-ASI (270 Mb/s) input and 6+6+6+6 SDI/DVB-ASI (270 Mb/s) output with double power supply.
