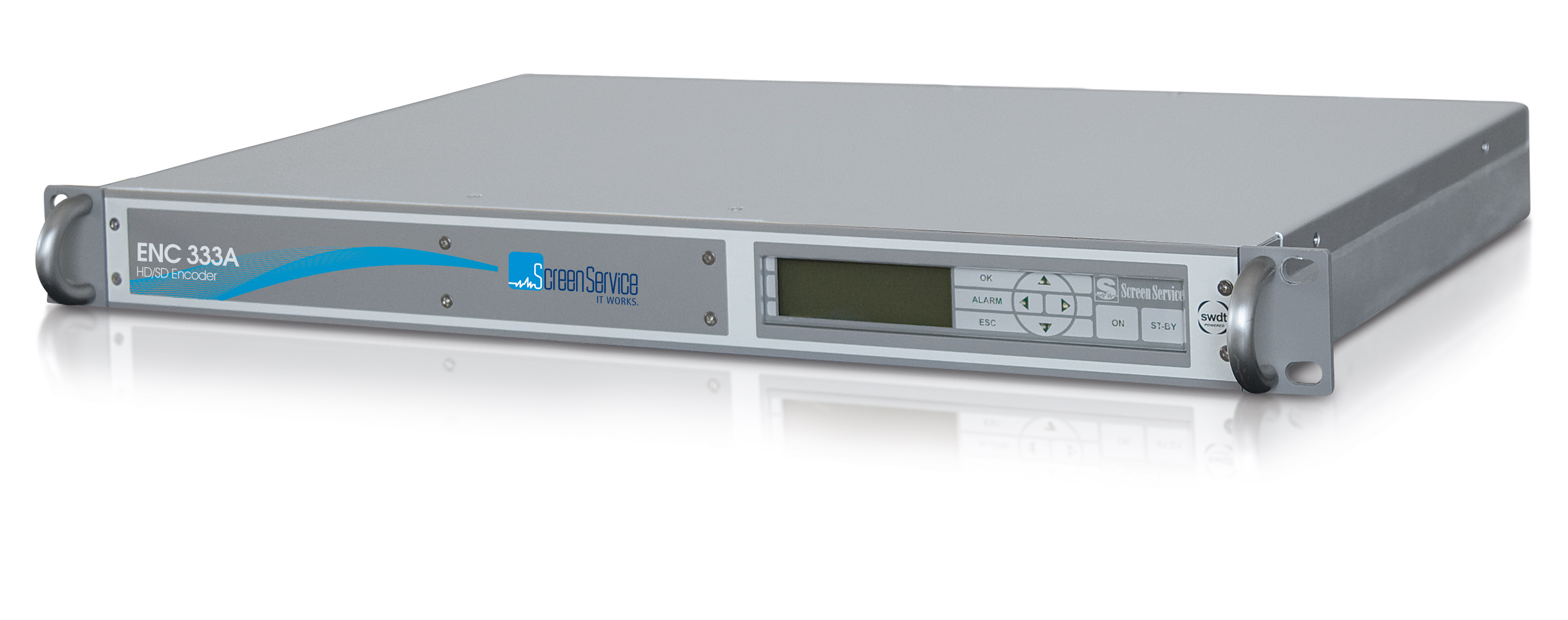

ENC 333A

The ENC 333A is a high-definition system designed for real-time audio/video encoding for broadcast applications. This device is able to encode several HD and SD formats, providing high quality video, suitable for broadcast transmission. The video encoding technique, H.264 and MPEG-2, guarantees low output bit-rate with a flexible range that goes from 2 up to 25 Mbps. The audio stream is coded with high efficiency and quality, using: MPEG-1 Layer II, AAC-HE and AAC-LC or Dolby Digital Pro.
ENC 333A encodes in SD or HD resolution the video input signal that it come from one of the inputs: SDI, HDMI, and Analog Video (Y, Cb, Cr), according to the coding standards, H.264 and MPEG-2.
The ENC 333A includes not only video processing, but also stereo audio encoding in MPEG-1 Layer II (MP3), AAC HEv1, HEv2 and LC formats, Dolby Digital CE and Dolby Digital Professional. Video and audio elementary streams are multiplexed in an MPEG-2 Transport stream for output over an ASI link. A separate ASI input provides support for an external PSIP/SI data generator. Next to PAT and PMT, PSIP support includes MGT, TVCT and CVCT, while SI support includes NIT, SDT, CAT and TDT.
