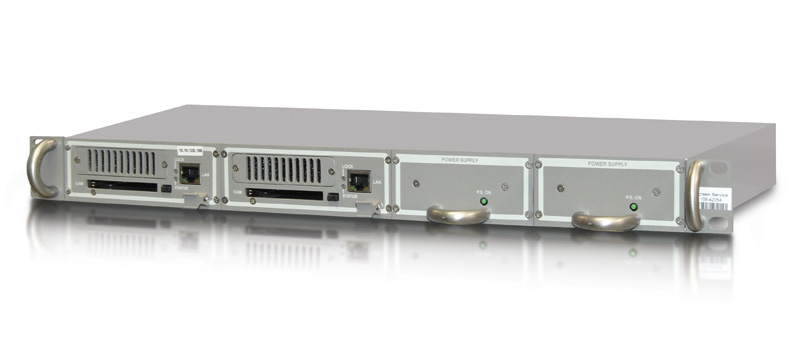

PRO RX S2 with Decoder
The PRO RX S2 is a DVB-S/S2 receiver with up to three ASI outputs designed for the primary distribution of mobile and/or terrestrial television over satellite. Operating in compliance with the DVB-S2 standard, the PRO RX S2 is capable of demodulating multiple MPEG transport stream in multi-stream mode: once received the input multi-stream, the transport streams are separated again based on their DVB-S2 Input Stream Identifier (ISI), then the desired services are descrambled by a CAM (Smart Card – common interface) modules with commonly adopted CAS in the market. With ASI and IP interfaces for input and output, PRO_RX_SAT 2 can be integrated into any head end systems for content delivery and re-distribution. (Professional Satellite Receiver, DVB S2 Professional Receiver).
Audio and Video services are decoded and available on several interfaces.
RF Input
Connector used as input to the systems
• N° input: 1 for each receiver board
• Connector type: LNB (female)
• R input: 75 Ω
• V input: 1.75 V
• Frequency: 950 to 2150 MHz
• DVB-S (ETSI EN 300 421)
• DVB-S2 (ETSI EN 302 307)
1 x Common Interface (for each receiver)
Connector used as input CAM
• Connector type: PCMCIA
• DVB-CI EN 50221-1997
• BISS descrambling - up to full TS
• CA Methods : MultiCrypt, SimulCrypt
1 x FastEthernet (Management)
• Connector: RJ45
• Standard supported: IEEE 802.3
3 x ASI Output (same content)
• TS Descrambled (TSD)
• Connector type: BNC
• Input: 75 ohm, 800 mVpp (500 to 1200mVpp)
• MPEG-2 TS ISO/IEC 13818-1
• CEI EN 50083-9,
Management of the devices is made through:

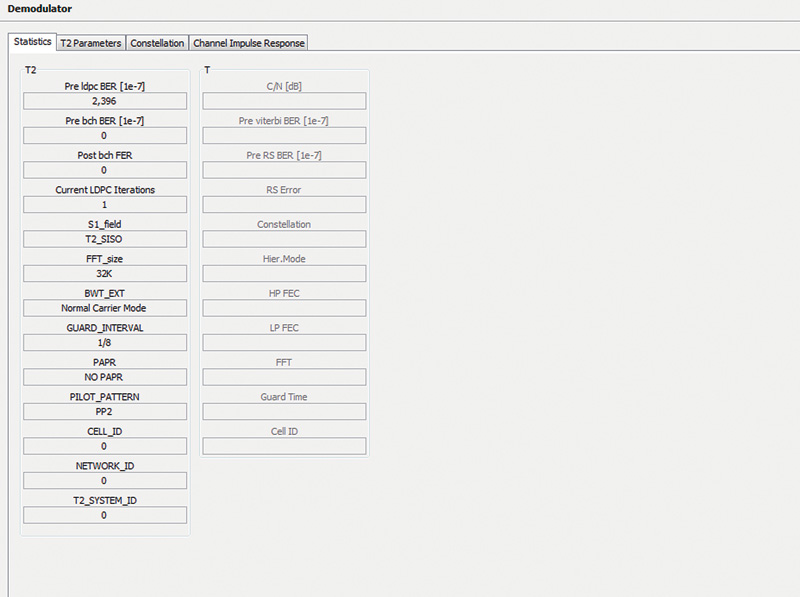

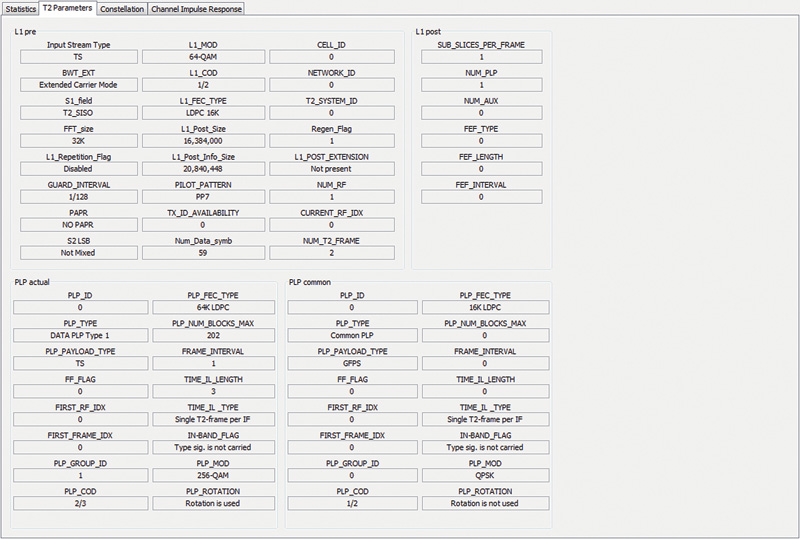

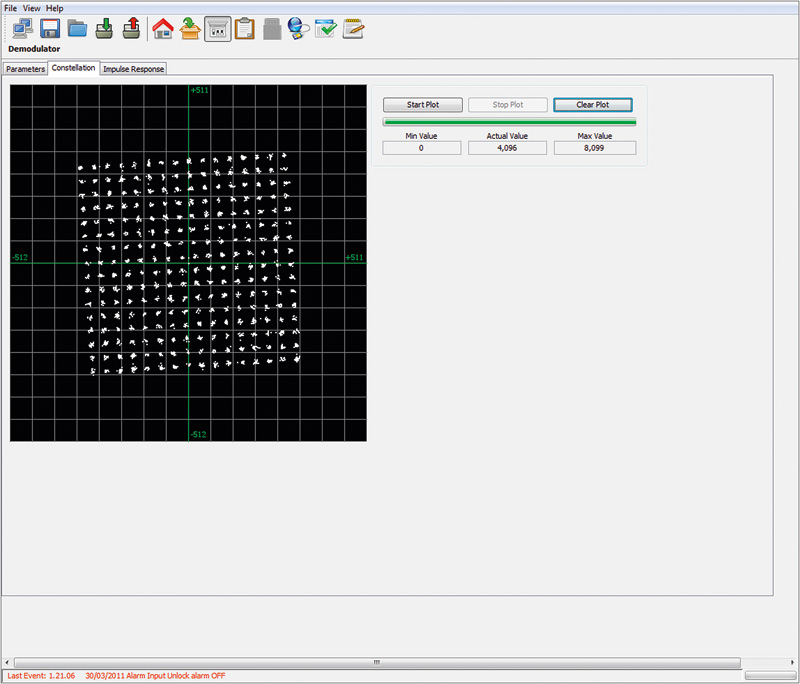

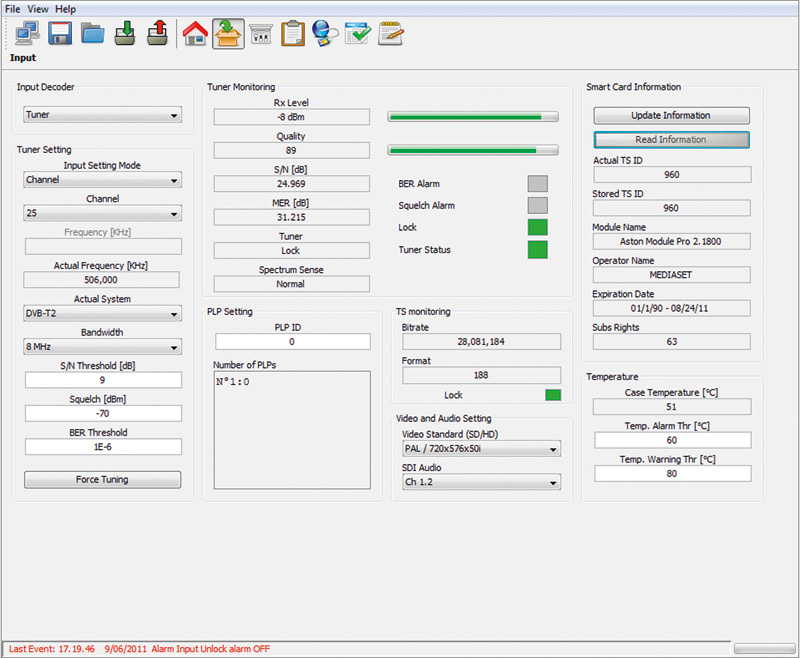

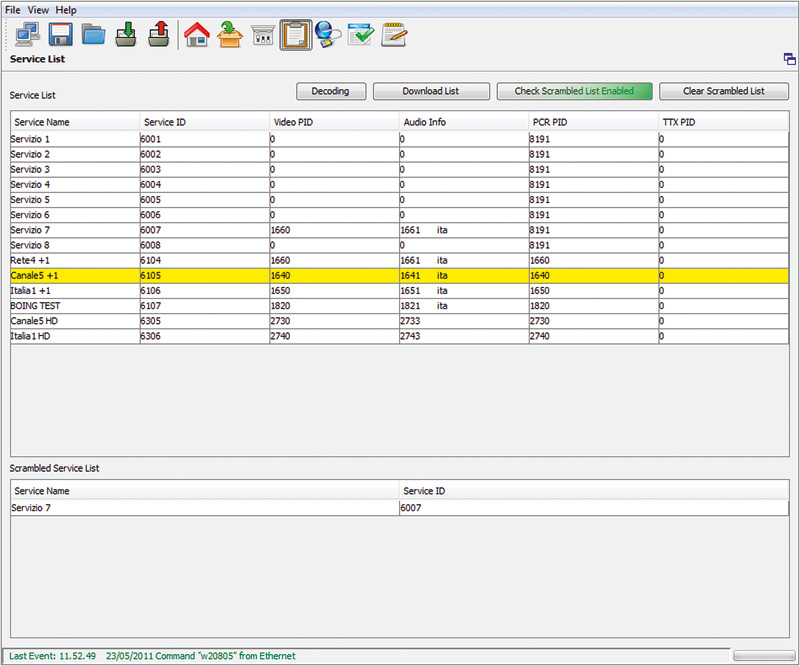

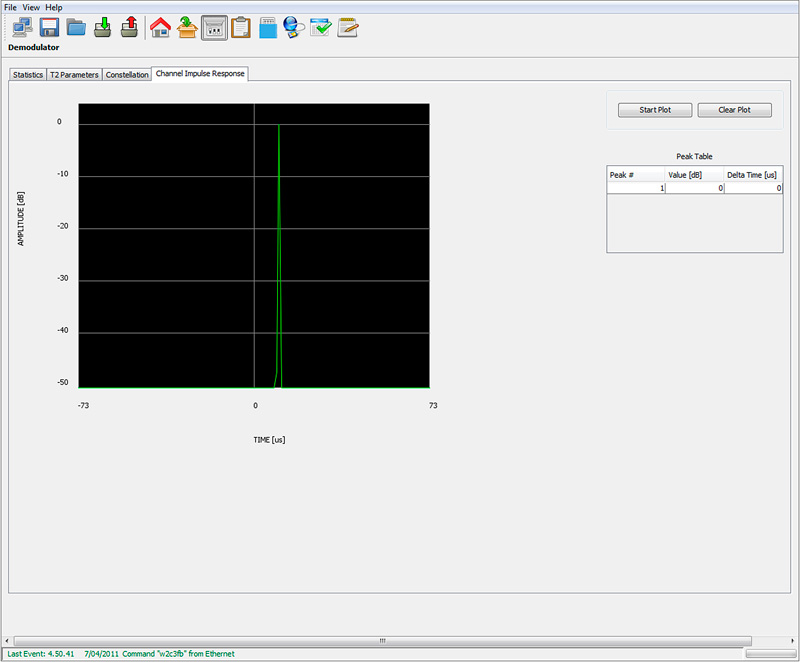

• Java GUI on Ethernet connection.
• SNMP agent.
Power Supply
• Dual Power Supply (only in 1+1 or 2+0 confinguration)
• 110/220V AC Auto Switching
• 48V DC (Option on Request)
Audio/Video decoder section description:
Video standard supported:
• H.264/AVC: Level 4.1 high profile video decoder
• MPEG-2: MP@HL
HD video resolution supported:
• 1920x1080i30
• 1920x1080i25
• 1280x720p60
• 1280x720p50
SD video resolution supported:
• 720x576i25 compliant PAL-BG
• 720x576i29 compliant PAL-M
• 720x480i compliant NTSC
Audio standard supported:
• MPEG-2, layer I
• MPEG-2, layer II
Options:
• DolbyÆ Digital (AC-3) stereo down-mix
• Dolby Digital 5.1 passthrough
• Dolby Digital Plus (E-AC-3)
• Dolby E passthrough
• AAC
Close Caption supported
