PRO RX T2 with Decoder

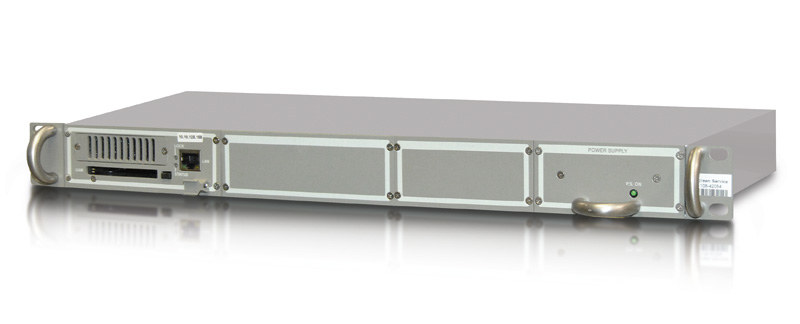

The PRO-RX T2 is a multi-standard (DVB-T and DVB-T2) receiver, with integrated DVB-T and DVB-T2 receiver, DVB descramblers and a DVB decoder.
Pro Rx-T2 receives a RF signal modulated with standard ETSI EN 302755 or ETSI EN300744, demodulates it and output a MPEG-2 TS over ASI. The on-board PCMCIA slot provides common interface connection to descramble encrypted contents. PRO-RX T2 receiver is designed to receive a TV signal, complying with ETSI EN 302 755 v1.2.1_0.11 (2009-2010) or ETSI EN 300 744, at a given frequency, demodulate it, decode the Transport Stream, descramble selected services and output the stream over ASI interface.
As alternative to RF signal, it can directly receive an MPEG Transport Stream, complying with ISO/IEC standard 13818-1 (or ITU-T Rec. H.222.0), decode it, descramble selected services and output the stream over ASI interface. PRO-RX T2 receiver can operate either as DVB-T or as DVB-T2 receiver. One of the main feature of PRO-RX T2 is the monitoring of all parameters of demodulation process both for DVB-T and for DVB-T2 input signal. Furthermore, it provides the plots of actual Constellation and Channel Impulse Response.
PRO-RX T2 with decoder works also as Decoder. It takes the demodulated and descrambled
TS, then decodes and outputs a selected service through several physical interfaces, in order to connect the outputs directly to the TV
DVB-T2 signal reception features:
• Automatic L1 signaling decoding.
• Fully compliant to all the standard Guard Intervals; Code Rates, Constellations.
• Provides manual selection of a single stream from single or multiple PLP input signal.
• Automatic output constant stream rate;
DVB-T signal reception features:
• Automatic TPS signaling decoding;
• Fully compliant to all the standard Guard Intervals; Code Rates, Constellations.
• Fast automatic 2k – 8k acquisition.
• Automatic spectral inversion.
Pro Rx T2 provides the following monitoring and statistics:
• SNR estimation.
• MER measure.
• Pre LDPC, BCH BER.
• Post BCH FER (FEC block Error Rate).
• Percentage signal quality.
• P1 parameters monitoring.
• L1 pre/post parameters monitoring.
1 x RF Input for each receiver board
• Frequency: 42 to 866 MHz
1 x Common Interface (for each receiver)
Connector used as input CAM
• Connector type: PCMCIA
• DVB-CI EN 50221-1997
1 x FastEthernet (Management)
• Connector: RJ45
• Standard supported: IEEE 802.3
3 x ASI Output (same content)
• TS Descrambled (TSD)
• Connector type: BNC
• Input: 75 ohm, 800 mVpp (500 to 1200mVpp)
• MPEG-2 TS ISO/IEC 13818-1
• CEI EN 50083-9,

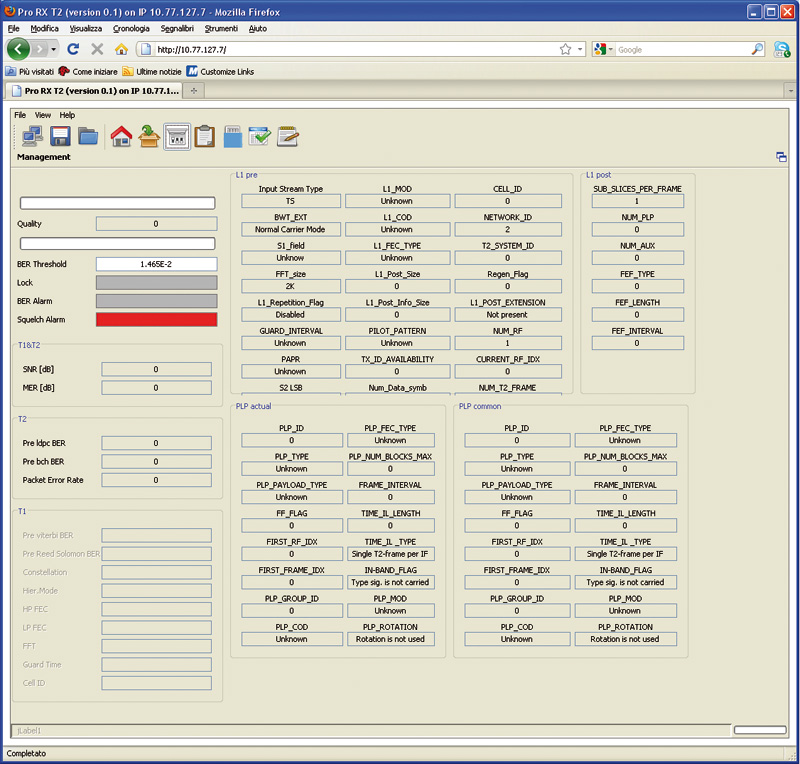

Management of the devices is made through:
• Java GUI on Ethernet connection.
• SNMP agent.
Power Supply
• Dual Power Supply (only in 1+1 or 2+0 confinguration)
• 110/220V AC Auto Switching
