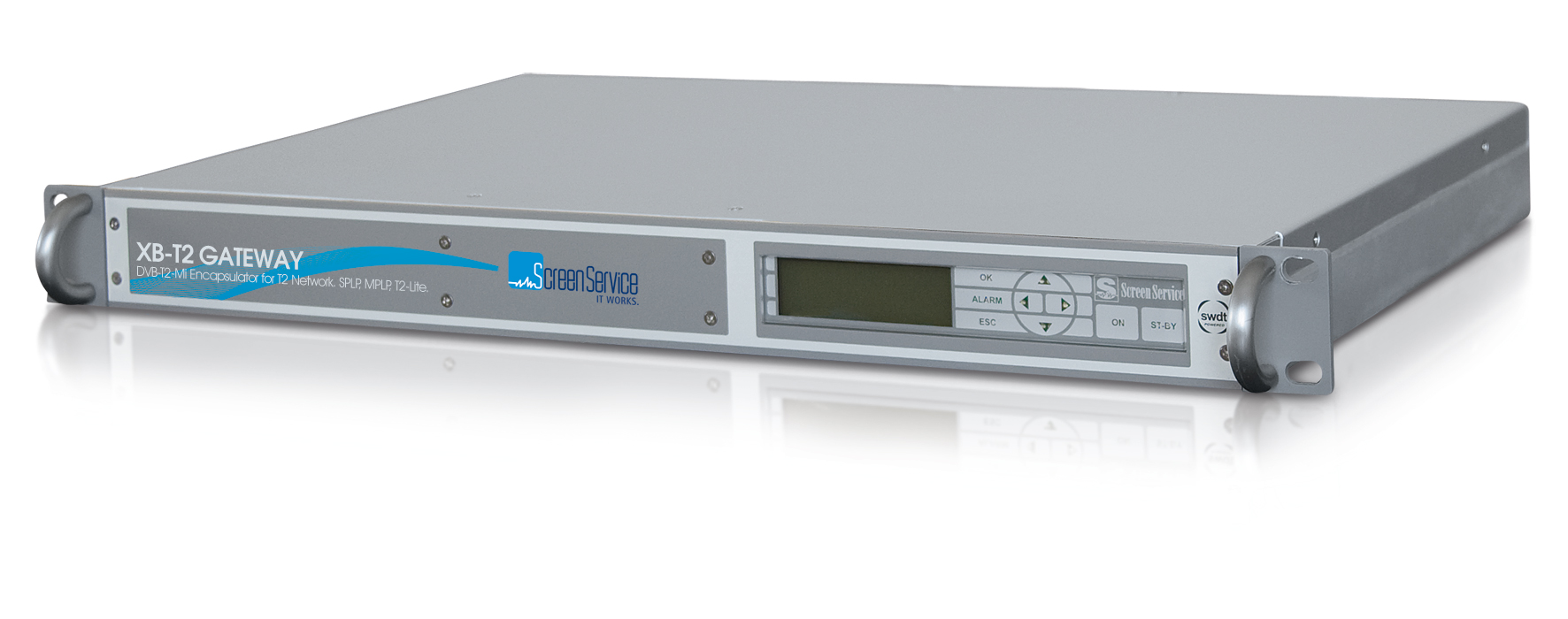

XB-T2Mi Gateway DVB-T2
T2-MI encapsulator for DVB-T2 networks, Single Frequency Network Synchronizer over ASI and IP.
DVB-T2, as a new terrestrial broadcasting standard, provides an increased bandwidth efficiency and better network management through several tools such as Physical Layer Pipes or MISO.
XB-T2Mi Gateway allows your network to reach Single Frequency Network (SFN) performances and an higher level of robustness.
To unlock these features, the XB-T2Mi Gateway is your key choice for your DVB-T2 transmission chain.
Applications:
• DVB-T2 SFN networks,
• DVB-T2 Multi-PLPs networks,
• centrally controlled DVB-T2 networks.
XB-T2Mi SSBT is a DVB-T2 Gateway compliant (ETSI EN 302 755, ETSI TS 102 773). It generates a “T2-MI” stream, a sequence of T2-MI packets, which is fed to one or more DVB-T2 modulators in a SFN/ MFN network. The key features of the T2-Gateway are:
• Standard MPEG-2 TS encapsulated T2-Mi outputs (ETSI TS 102 773) over ASI (EN-50083/9), Gigabit Ethernet (PRO-MPEG COP3 R2) and SPI;
• MPEG-2 Transport Stream inputs (ISO 13818-1) over ASI (EN-50083/9), Gigabit Ethernet (PROMPEG COP3 R2);
• Manageable remotely via Java GUI and SNMP interface (full operative control) and locally by display (partial control).
• External or GPS clock locking for SFN purpose.
• PAT and PMT insertion.
• Single PLP, Multi PLPs.
• Automatically-calculated constant-rate T2-Mi output (using L1 signalling).
• Automatically-calculated constant-rate TS input (using L1 signalling).
• Null-packet insertion.
• 16 different configurations can be saved.
• Individual Addressing insertion.
• Configuration check.
• Time Clock synchronization by: Manual, GPS and NTP.
• ASI and IP I/O support
• Easy-to-use web based
